Summit 24" Built-In Commercial Auto Defrost Kegerators, ADA Compliant SBC56GBINKADA Review

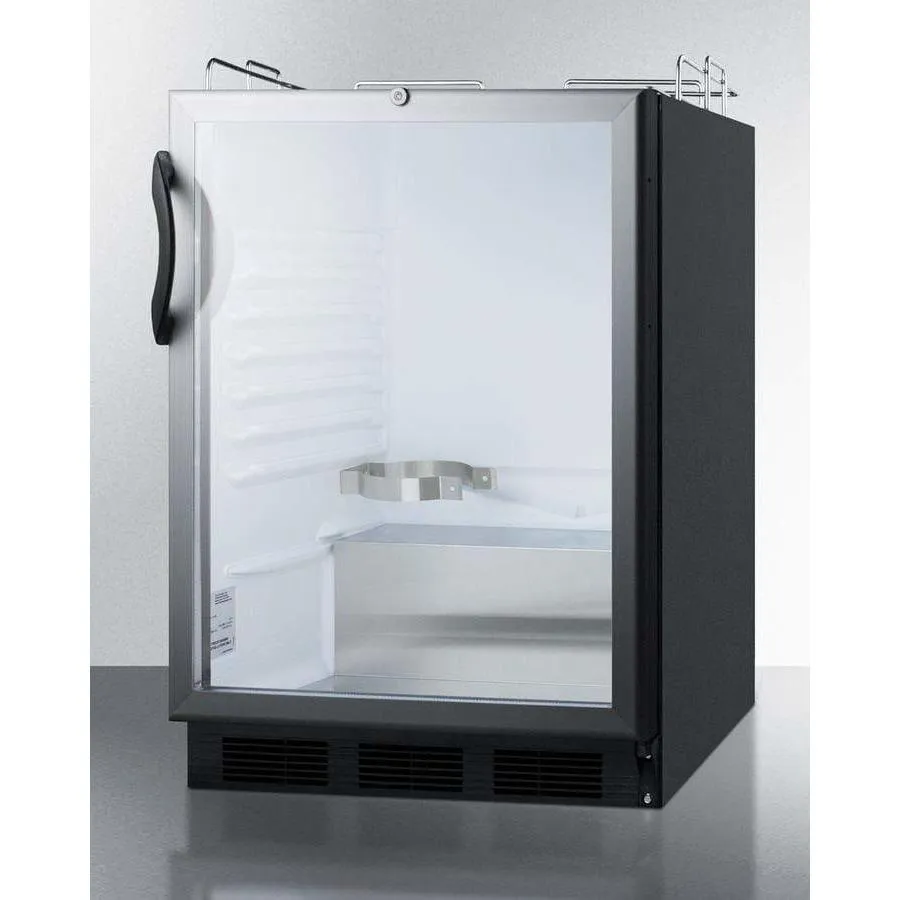

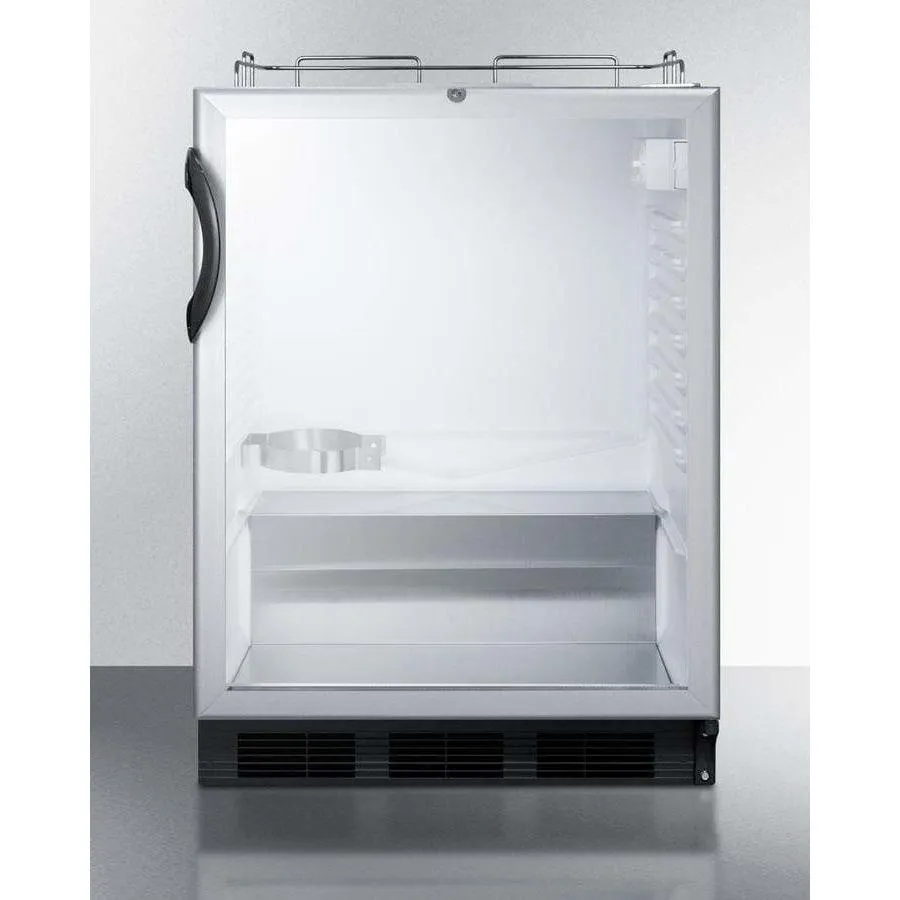

Summit Commercial brings unique appliance choices to ADA compliant settings with a new line of commercial beer dispensers made in Europe. Sized at 32 inches high, the SBC56GBINKADA is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. This unit features a user-reversible double pane tempered glass door for a full display of the interior. A factory-installed lock is conveniently located towards the top of the door for added security. We include a guard rail (ships uninstalled) and removable two-piece stainless steel drip tray for cleaner service. The SBC56GBINKADA does not include any tapping equipment, allowing "do-it-yourselfers" to customize their draft system. Inside, the SBC56GBINKADA is designed to hold two 1/6 (sixtel) kegs. Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. A CO2 tank bracket is located inside, allowing you to keep the tank inside and save on exterior depth. The SBC56GBINKADA is ETL-S listed to NSF-7 commercial standards. Additional ADA compliant kegerator choices are available with panel-ready or glass doors. Browse our complete line for more choices.
FEATURES
- ADA compliant height
- Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters
- Commercially approved
- ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings
- Built-in capable
- Front-breathing design allows fully recessed installation under counters
- Tap kit not included
- Install your own tapping equipment to create a customized beer cooler
- Designed for 1/6 kegs

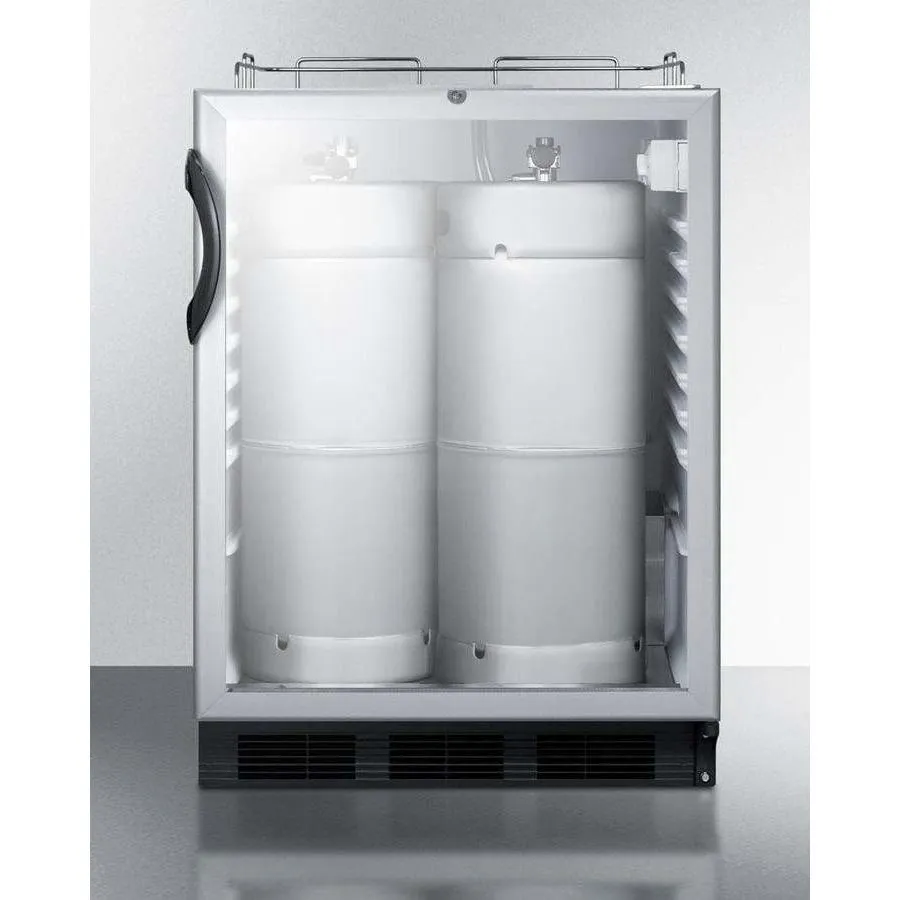

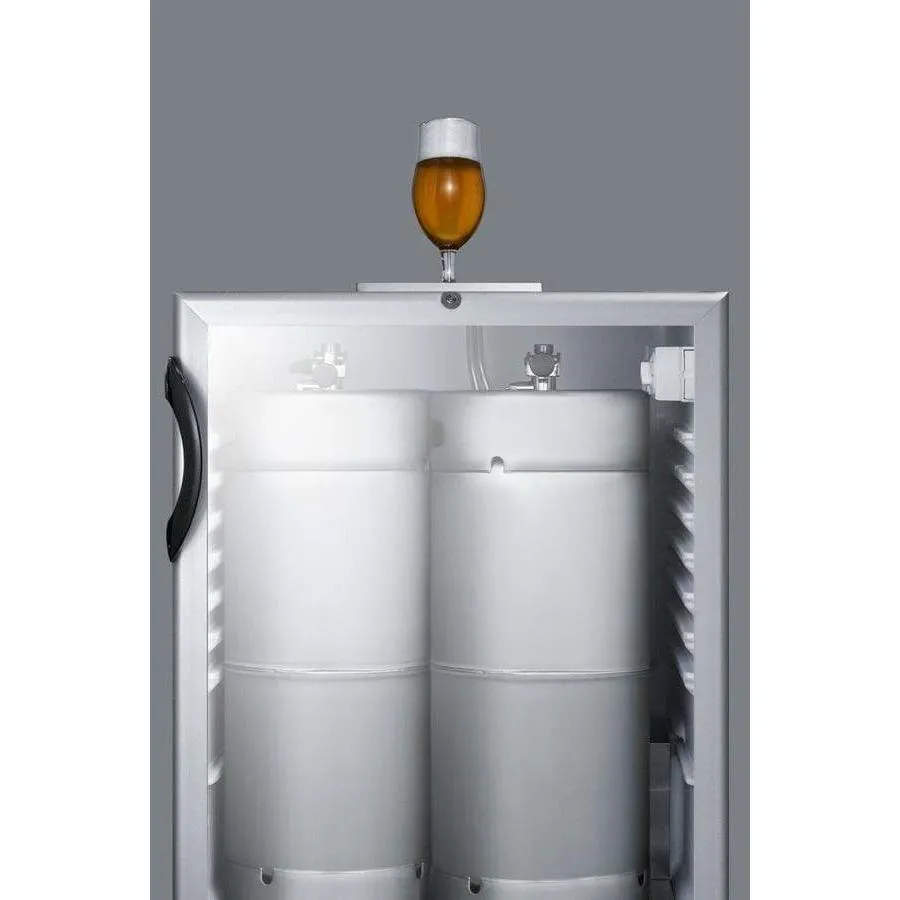

- Interior can store up to two sixtel kegs
- Double pane tempered glass door
- Heat resistant design provides clear view to promote impulse buys
- Factory-installed lock
- Keyed lock conveniently located towards the top of the door for added security (2 keys included)
- Adjustable thermostat
- Interior dial thermostat ensures easy temperature management
- Automatic defrost
- No-frost operation for minimum user maintenance
- Reversible door
- User-reversible door swing allows you to easily adjust to better accommodate your setting
- Stainless steel drip tray
- Removable two-piece drip tray included for added convenience
- Stainless steel guard rail
- Durable railing makes it easier to neaten service
- Interior light
- Turn the light on when you need it and off when you're done with a convenient rocker switch
- Interior CO2 holder
- Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
- Stainless steel floor cover
- Interior includes steel cover to protect the floor when loading kegs
- One piece interior liner
- Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
- Hidden evaporator
- Cold wall design with hidden evaporator and seamless interior
- Fully finished cabinet
- Allows the unit to be used freestanding
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
SPECIFICATIONS
| Overview | |
|---|---|
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Width | 23.38" (59 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 24.88" (63 cm) |
| Depth with door at 90° | 44.5" (113 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 110.0 lbs. (50 kg) |
| Shipping Weight | 120.0 lbs. (54 kg) |
| Estimated Time to Ship | 3 to 5 days |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| Kegerator | |
| Door Swing | RHD |
| Reversible | Yes |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Fan Type | Exterior |
| Refrigerant | R600a |
| Refrigerant Amount | 0.67 oz. |
| High Side PSI | 124.0 |
| Low Side PSI | 30.0 |
| Inter Height | 26.0" (66 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 18.0" (46 cm) |
| Compressor Step Height | 7.0" (18 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
| Temperature Range | 34º to 43ºF |
