- PRICES EXCLUDE DELIVERY TO SITE ()
- PRICE INCLUDES STEEL DOOR, TRACK, ROLLERS, FLOOR GUIDE (INTERNAL) PULL HANDLES, SINGLE TOUGHENED SAFETY GLASS
- IMAGE SHOWN IS JUST FOR REFERENCE FOR PRICE ESTIMATE PLEASE SELECT THE CLOSEST SIZE FROM THE DROP DOWN MENU
- PRICE INCLUDES GST
- ALL DOORS CUSTOM MADE NO STANDARD SIZES
Features & Benefits
- Modern Architectural Design
- Custom Hand Made Construction for Durable Functionality
- Built from High Quality Galvanised Steel Tube Profile
- Fluorocarbon Coating, a superior finish to Powder coating
- Steel Sliding Track and Heavy Duty Rollers Included
- Single Glazed Toughened Safety Glass included in price (Clear, Rainstorm, Hammered, Aquatex, Reeded (Fluted), Course Linen, Pinhead, AGC Low-E)(Double Glazing or Laminated Glass available at extra cost)
- Custom Steel Pull Handles Included in price
- Designed to Impress and Built to Last
- Orders Made from June 2023 - *5 Year Warranty - Must comply with our installation requirements.
Specifications
- Zen Barn Sliding Doors
- Use: Internal
- Door Design: Custom

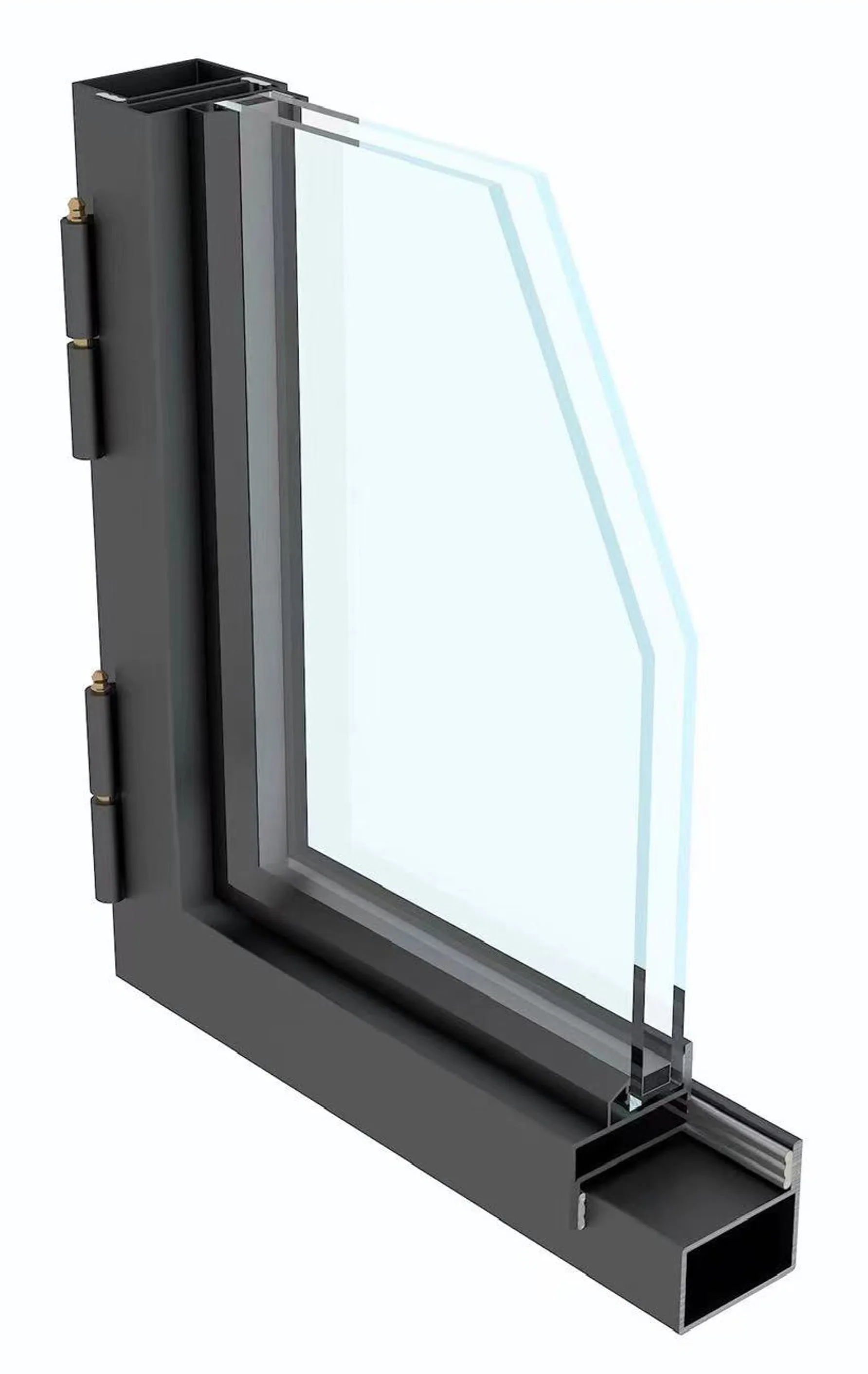

- Material: Precision cold formed galvanised steel profiles - ”P” profile design
- 3.2mm wall thickness tube with foam injected - Very compact profiles with minimal depth and sight-lines
- Surface treatment: Zinc-magnesium pre-coating for corrosion protection
- Gritblasting SA 2.5;
- The 1st layer is a sealing primer
- The 2nd layer is a high-durable top coating;
- Total thickness is at least 150-180 microns according to VMRG quality requirements.
- Paint: 4FC (Fluorocarbon) (DAIKIN of Japan)
- Colour: Standard Finishes or Large Range of RAL Powder Coat colours at extra cost,
- Door Frame: 50mm x 30mm
- Glass Type: Clear, Rainstorm, Hammered, Aquatex, Reeded (Fluted), Course Linen, Pinhead, AGC Low-E
- Glass Thickness: 5/8/10mm single glazed toughened safety glass
- TDL: 20T
- Beads: CTM20
- Door Type: Barn Sliding
- Max Door Panel Size: H3000mm x W1200mm
- Sliding Track: Up to W2400mm (Longer tracks will be connected with joiners)
- Mounting Type: Exposed Sliding Track & Rollers with floor guides
- Handles: Recessed Handle or Custom Steel Pull
- Hardware: Heavy Duty Rollers and Sliding Track
- Package: 5 Layers of packing, plastic film, soft foam sheet, corrugated paper board, bubble wrap and Wooded Sealed Box

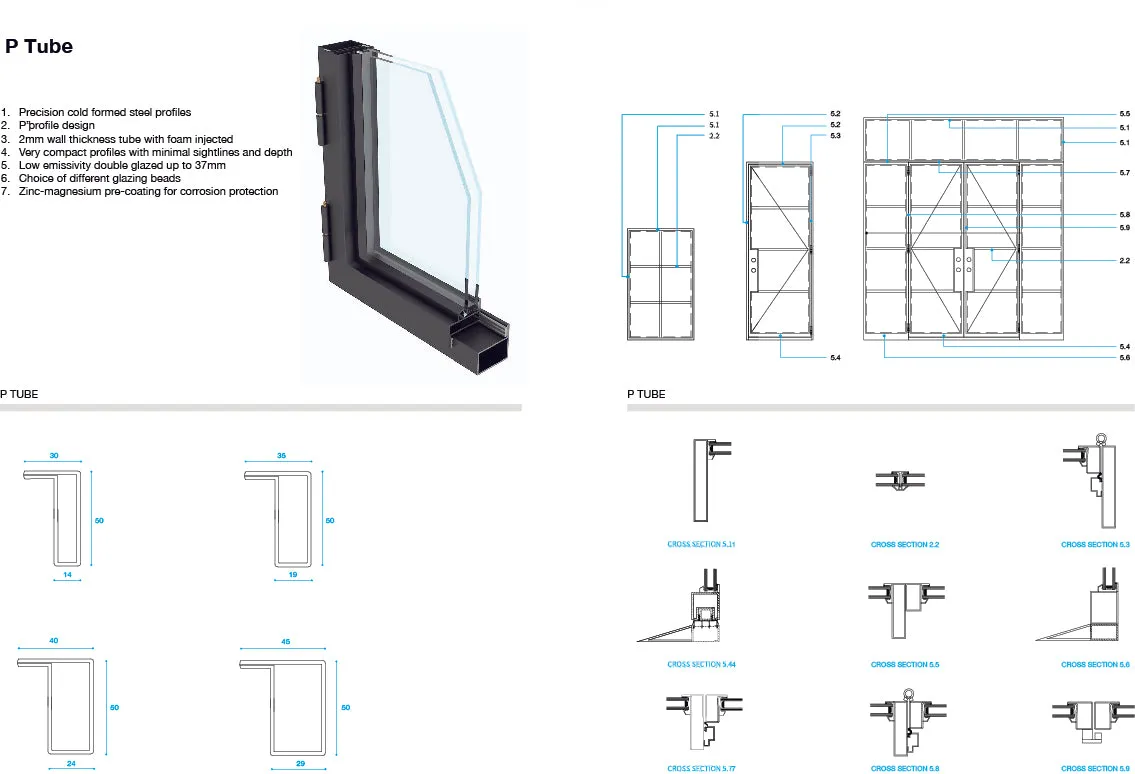

- CAD Design Drawing: Yes
NOTE: All Doors and Windows are pre glazed in the factory with glazing that meets Australian Standards. We can also supply Doors & Windows unglazed upon request.
