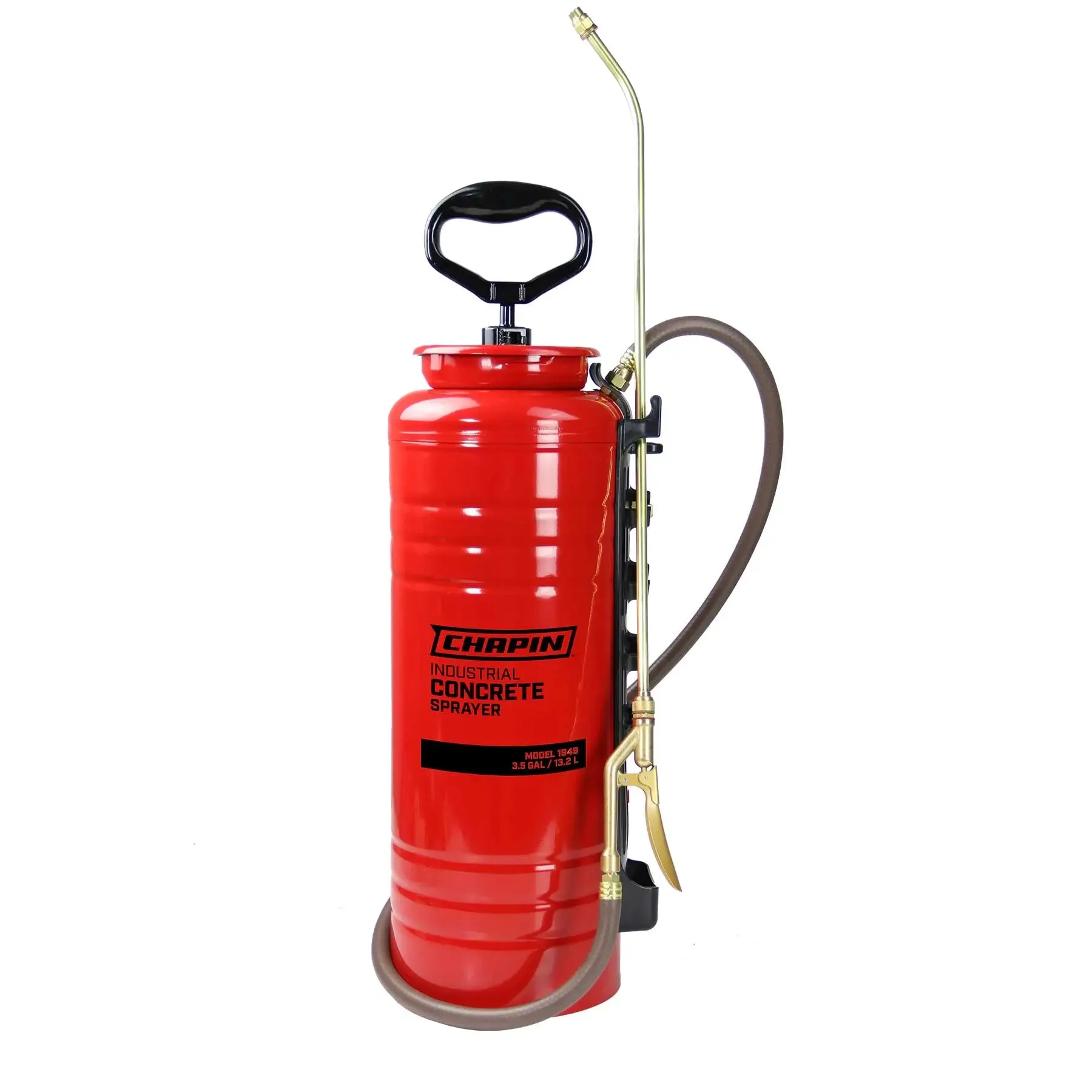

Concrete Sealer Solvent Industrial Metal Sprayer - Chapin 1949
Product Detail:- The Original, the Model 1949 Concrete Sealer Sprayer!
- We also carry many variations of sealer sprayers- .
- Industrial grade sprayer for solvent based sealer application.
- Exclusive TRI-POXY® lined steel for triple protection against corrosion, rust and damage from denting.

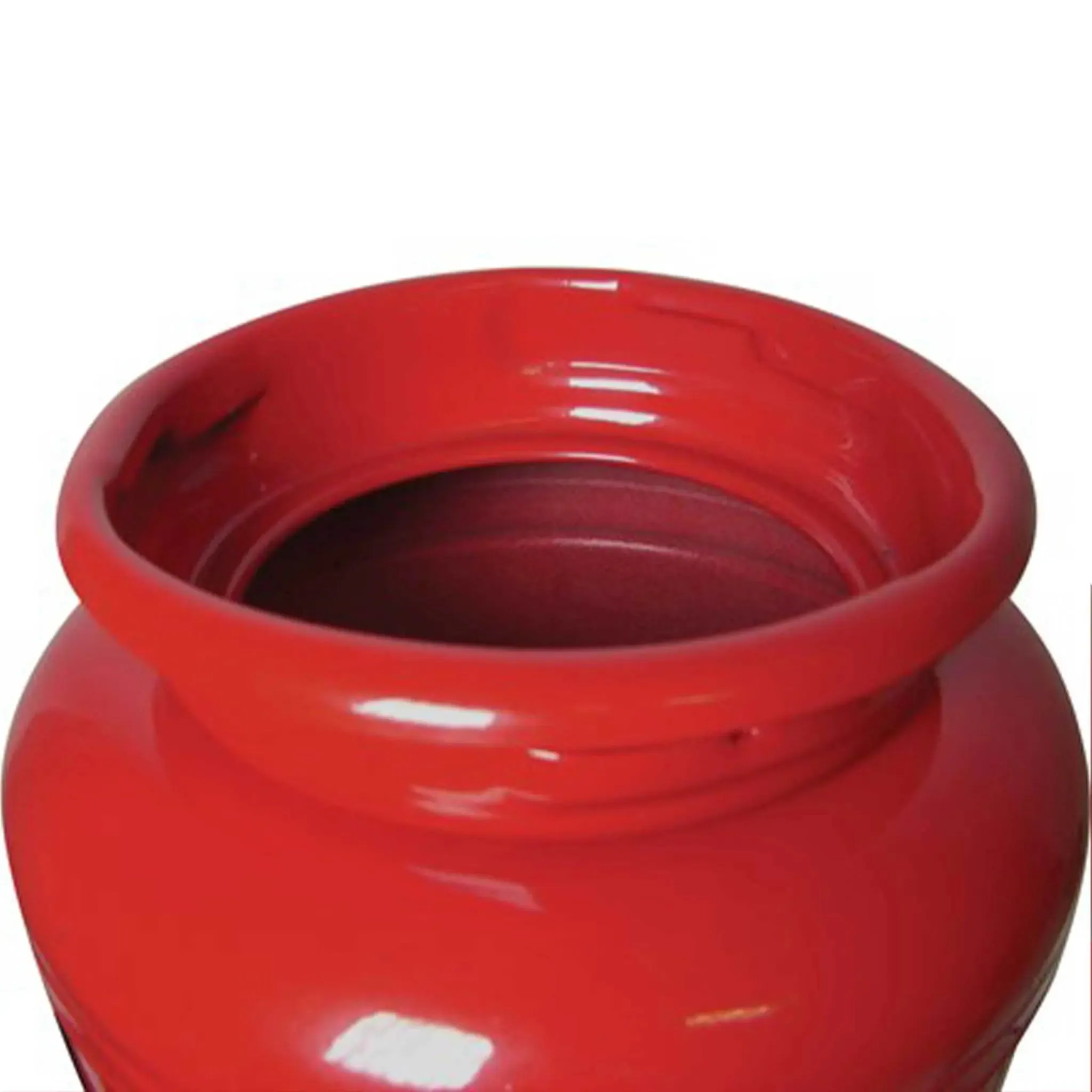

- Wide mouth for easy filling and cleaning.

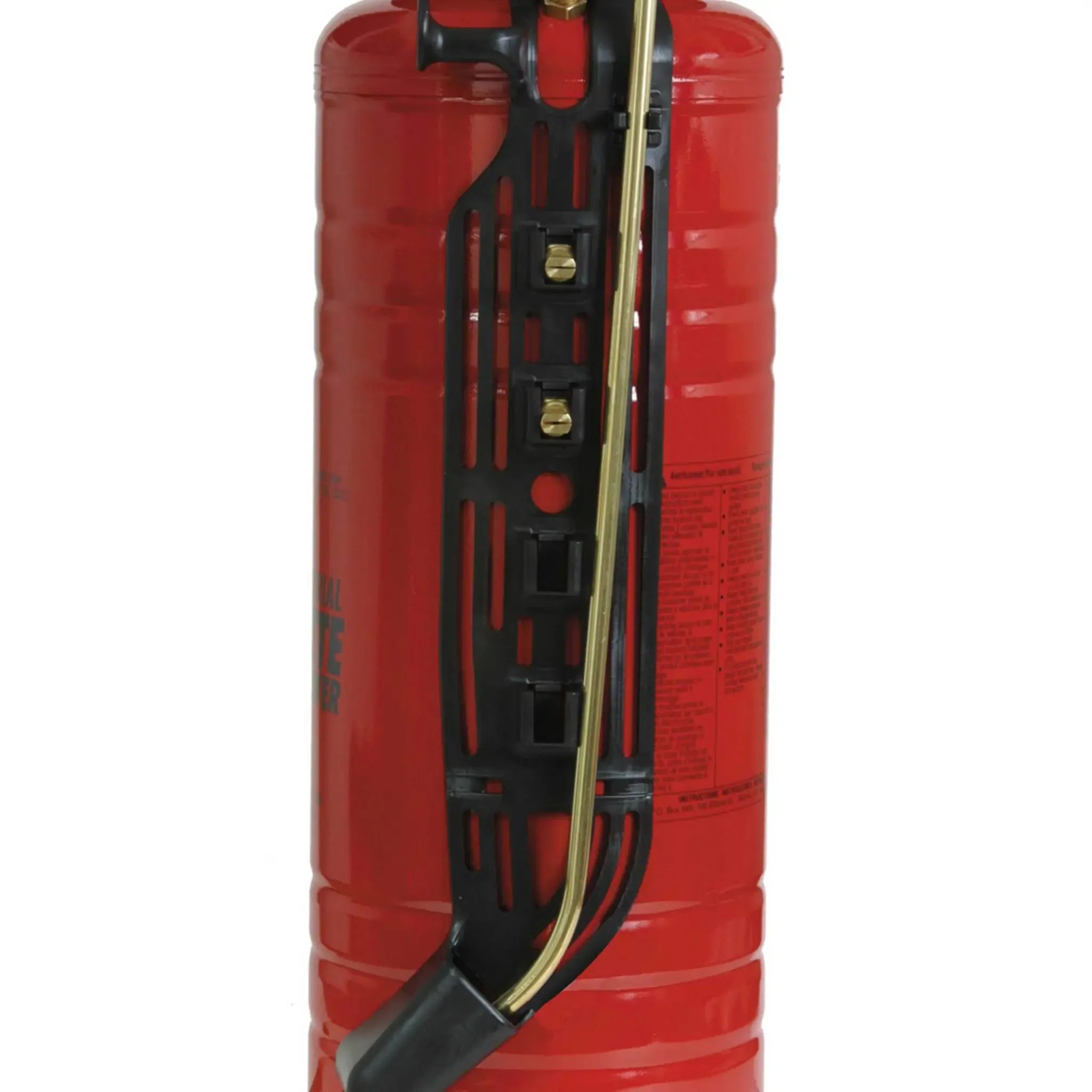

- Exclusive: Poly Holster on the side of the tank keeps wands and tips secure and free of debris when filling. Holds up to 4 separate nozzle tips.
- Brass fan spray nozzle for even coverage.
- Brass spray handle with "Lock-on" and quick release design. Threaded coupling for easy removal.
- VITON® o-rings and gaskets for maximum resistance to chemical attack.
- Hose reinforced with nylon braid and vinyl core to resist chemical attack, crimping, cracking and leaking.

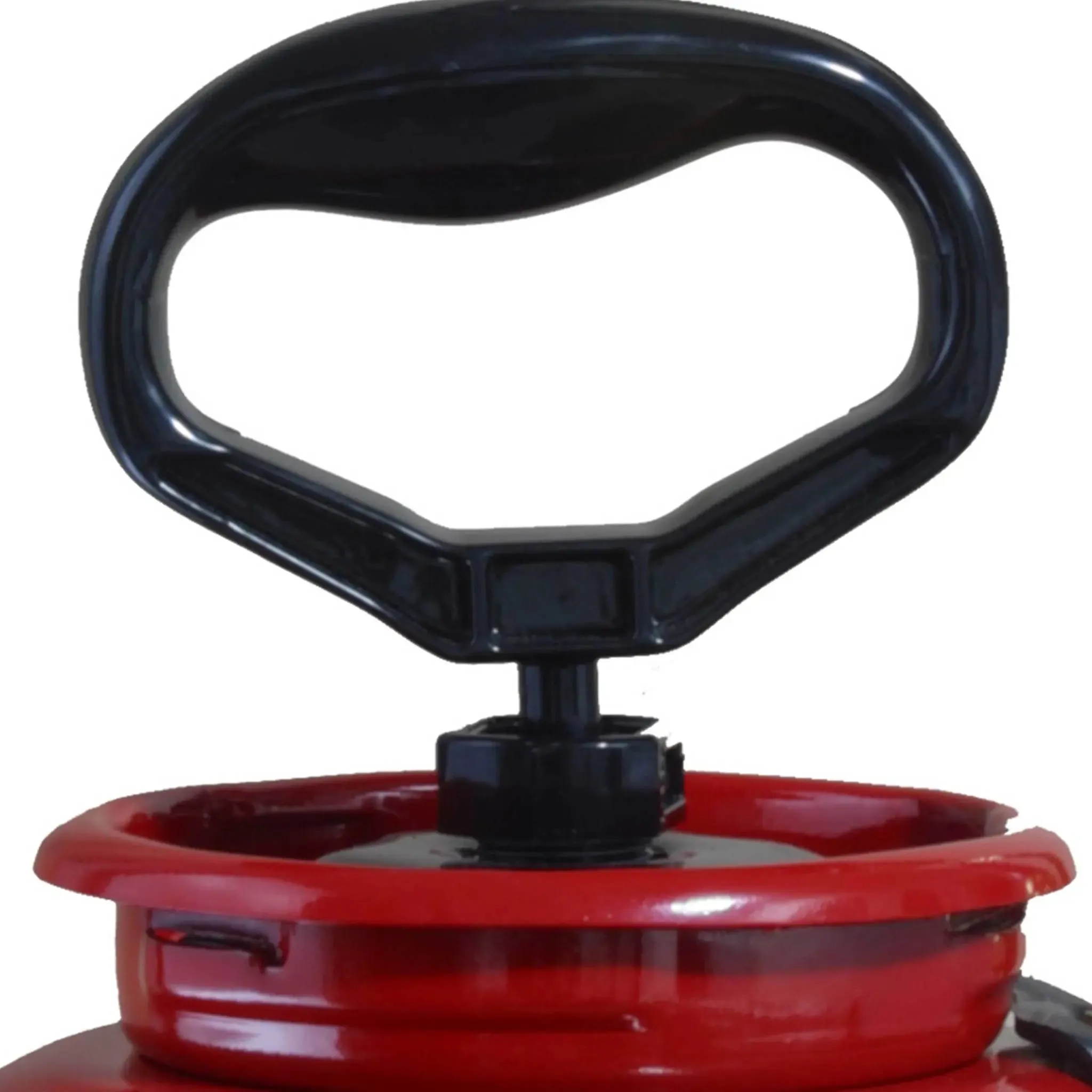

- Exclusive Ergo handles for more comfortable carrying.
Product Specifications:
- Open head sprayer.
- Capacity: 3.5 gallons.
- Included Nozzle: Fan Tip, 0.5 GPM spray rate.
- Download the manual for this sprayer .
- Technical Support Videos
Use and Cleanup:
Technical Specs
- To use, simply open the top, fill with sealer, close, pump to add air pressure, and then spray.
- Clean up: Slowly open the top to release any pressure. Remove any sealer left in sprayer. Clean out sprayer, tubing, and nozzles using xylene.
Technical Specs
| Model Number | 1949 |
| Tank Size | 3.5-gallon |
| Tank Mouth Opening | 4" |
| Tank Construction | Tri-poxy® steel |
| Pump Type | piston |
| Hose Length | 48" |
| Hose Material | reinforced hose |
| Shut-Off Material | brass |
| Lock-On Feature | lock-on feature |
| Anti-Siphon Feature | none |
| Shoulder strap | none |
| Battery Type | none |
| Spray Hours | none |
| Warranty | none |
| Spray/Flow Rate (GPM) | 0.5 -1.0 gpm |
| Nozzle(s) | brass fan-tip |
| Filters | none |
| Frame | none |
| CFV | none |
| Handle | tri-lock cap, ergonomic handle |
| Shipping Weight In Pounds | 11.75 |
| Package Dim. In. (LxWxH) | 9x9x28.1 |
| Item Dim. In. (LxWxH) | 8.75 x 8.75 x 27 |
| Item Weight In Pounds | 10.5 |
| Pressure relief valve | none |
| Extension Wand Material | brass |
| PSI - Operating Pressure | 40-60 psi |
| Motor Size | none |
|
Extension Wand Length
|
24-inches
|
|
Spray Stream Max Vertical
|
3-feet
|
|
Spray Stream Max Horiz.
|
3-feet
|
*Spray distance is dependent on many factors such as adjusted nozzle orifice size, tank pressure, wind interference and angle of inclination. Spray distances may vary based on user's specific application.
